- Processed Products
- Material:Soft Temper Carbon Steel, Copper, and Aluminum Tubes
- Product tube diameter: Φ4.76mm–Φ12.7mm, wall thickness 0.5mm–1mm

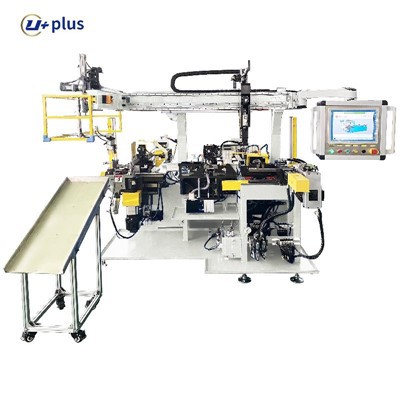

- Machine use for copper tube straightening, cut to length, end forming and tube bending processing, primarily use for household refrigeration industry pipe fitting processing.
Product Features
1.Machine use for copper tube straightening, cut to length, end forming and tube bending processing, primarily use for household refrigeration industry pipe fitting processing.
2.High degree of processing integration, stable and reliable, high efficient, high cost-effective.
3.Machine design compact, small floor area.
4.Independent development system with strong extensionality, and customizability, support combinatorial production with configuration methods.
5.Multi configuration as optional (expansion, reduction, distributor, press flat, upseting, dotting, closing etc). Satisfied with different pipe processing.
6.Adont bus control svstem, do not need to homing ater start machine, strone anti-interference ability.
Product Parameters
|
Item |
Parameter |
|
Model |
CFB12-0X1-R1 |
|
Bending diameter |
φ4.76-φ12.7mm |
|
Wall thickness |
0.5mm ≤ δ ≤ 1mm |
|
Feeding length |
0-500mm |
|
Processing length |
7 0-500mm (Aetive ) 70-1200mm(Through type) |
|
Processing Efficiency |
9s/pes(with all processing) |
|
Power |
5KW |
|
Machine Dimensions |
L5.0×W1.5×H3.5M (nternal pull decoiler) |
